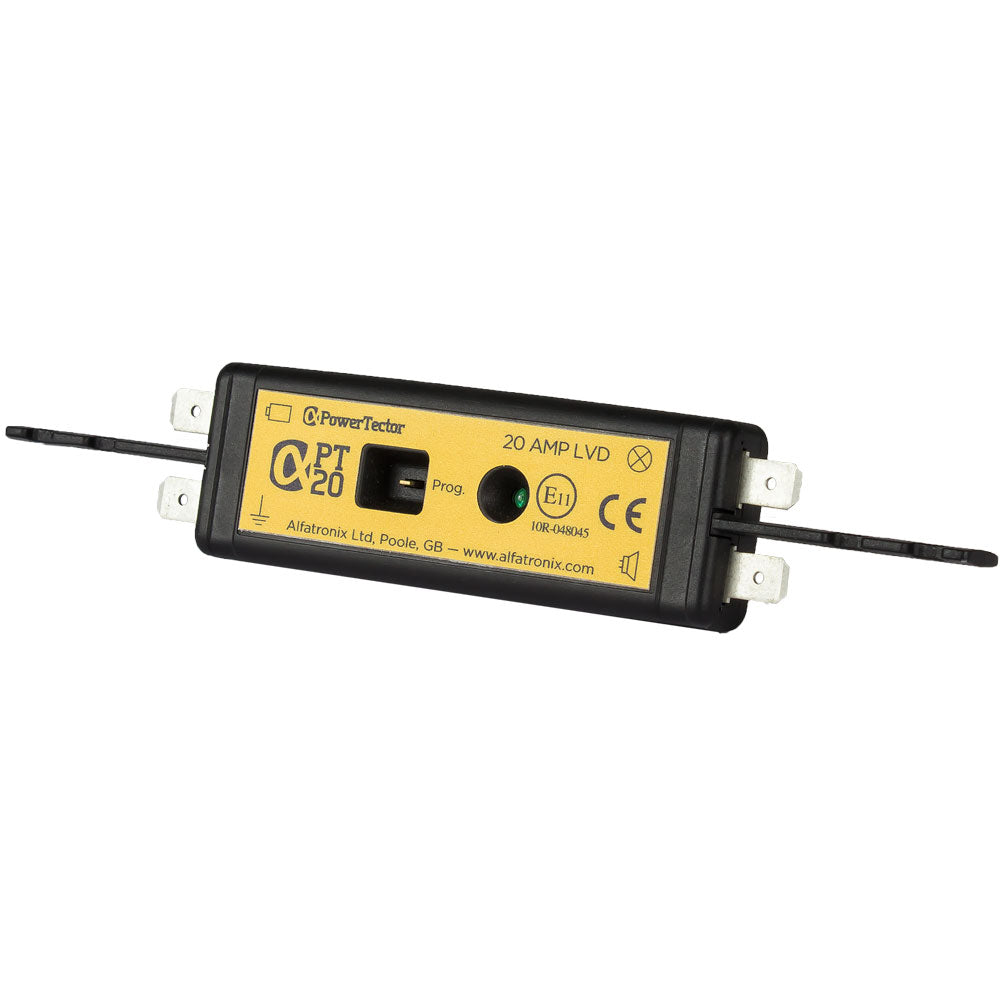

Alfatronix PowerTector Solid State Battery Guard 9-32VDC - 20A

• Power: 20A (Continuous)
• Voltage: 9-32VDC
• Dimensions: 153 x 30 x 15mm
• Weight: 45g

Solid State Battery Guards

The PowerTector Battery Guard is a solid state battery device that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level. This can work to ensure that there is always sufficient voltage remaining in the battery to start a vehicle engine or ensure power is available for other critical applications. The total discharge of a lead acid battery can also cause damage to the cells significantly shortening the life of the battery. The PowerTector unit can also be set to disconnect equipment at a lower voltage that will still protect the battery from total discharge while allowing for maximum battery usage. A timed version is also available which will disconnect automatically a set period after the ignition has been switched off.

A Wide Range of Features

There are six units in the range from 20A to 200A. The 20A unit offer a simple inline system usually wired to a specific piece of equipment. These units do not require chassis mounting and simply connect and tie wrap neatly within the wiring system. ​

The 40A and 60A units are connected by M6 brass bolts the 100A and 200A by M10 brass bolts and use a three point mounting system to avoid rocking or stress to the electronics when mounted on uneven surfaces. Heat is dissipated into our custom manufactured die cast casing and all units will operate at full power without additional heatsink dissipation.

Manual Shutdown Facility

From 40A upwards the units have the facility to be manually shutdown either through the ignition or a dedicated switch. In addition from 100A upwards the units can have an override switch fitted. This allows the units to be reactivated for four minutes to allow emergency actions to be performed.

Alarm & Disconnect Delay Feature

An alarm output is supplied which once the threshold has been reached for 10 seconds will activate sounding an alarm or other indicating device for a further 50 seconds prior to disconnection. This allows the operator to restart the engine or take other action to maintain continuous power.

Fully Programmable

All units in the range are supplied pre-programmed for a variety of scenarios offering higher or lower disconnect voltages and it is quick and simple to select the correct programme to suit your needs.
