AG Coaxial Cable Sold in 100 Metre Length (RG-213) 716501-100

AG Coaxial Cable Sold in 100 Metre Length (RG-213) 716501-100

SKU:716501-100

Regular price £579.94
Regular price £694.95 Sale price £579.94
Sale Sold out
Tax included. Shipping calculated at checkout.

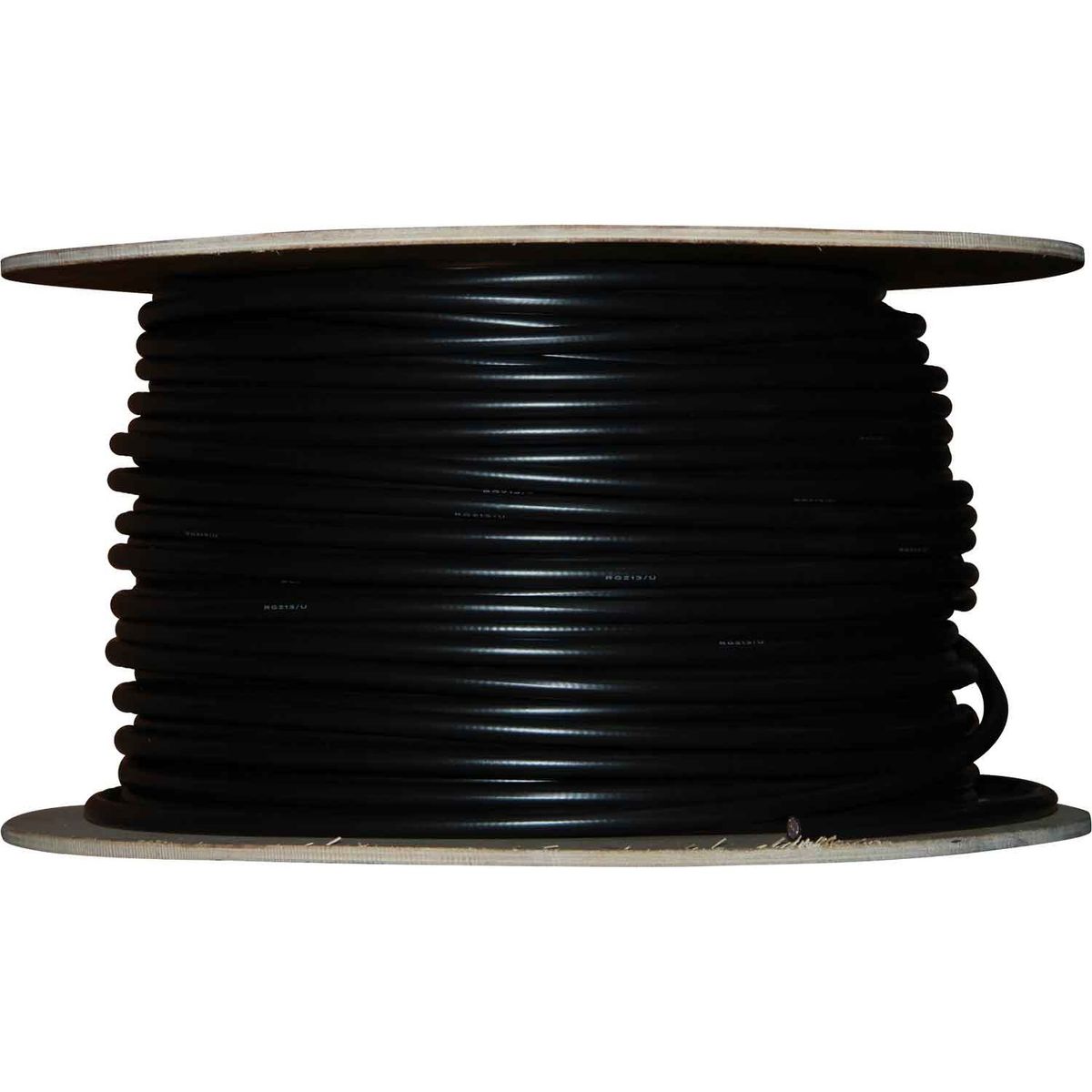

A 100 Metre Radio Guide 213 (RG-213) spec coaxial cable from the AG range. This cable is designed for transmitting radiocommunication signal, making it suitable for use on board boats. The cable features a centre core surrounded by a dielectric insulator, which is then protected by a metallic shield and a plastic jacket. The design does not permit electric and magnetic fields from outside the cable from interfering, and at the same time allows minimal leakage from inside the cable.
The dielectric insulator in this RG-213 is made from solid polyethylene which results in a time delay of 1.54 nano-seconds per foot. The insulating layer is 7.2mm thick and the whole cable measures 10.3mm in diameter. The cable features a single, braided shield to protect the signal carrying core.

- Dielectric Insulator Size: 7.2mm
- Characteristic Impedance: 50 ohms
- Max Attenuation: 5.967
- Available in 25m and 100m lengths
