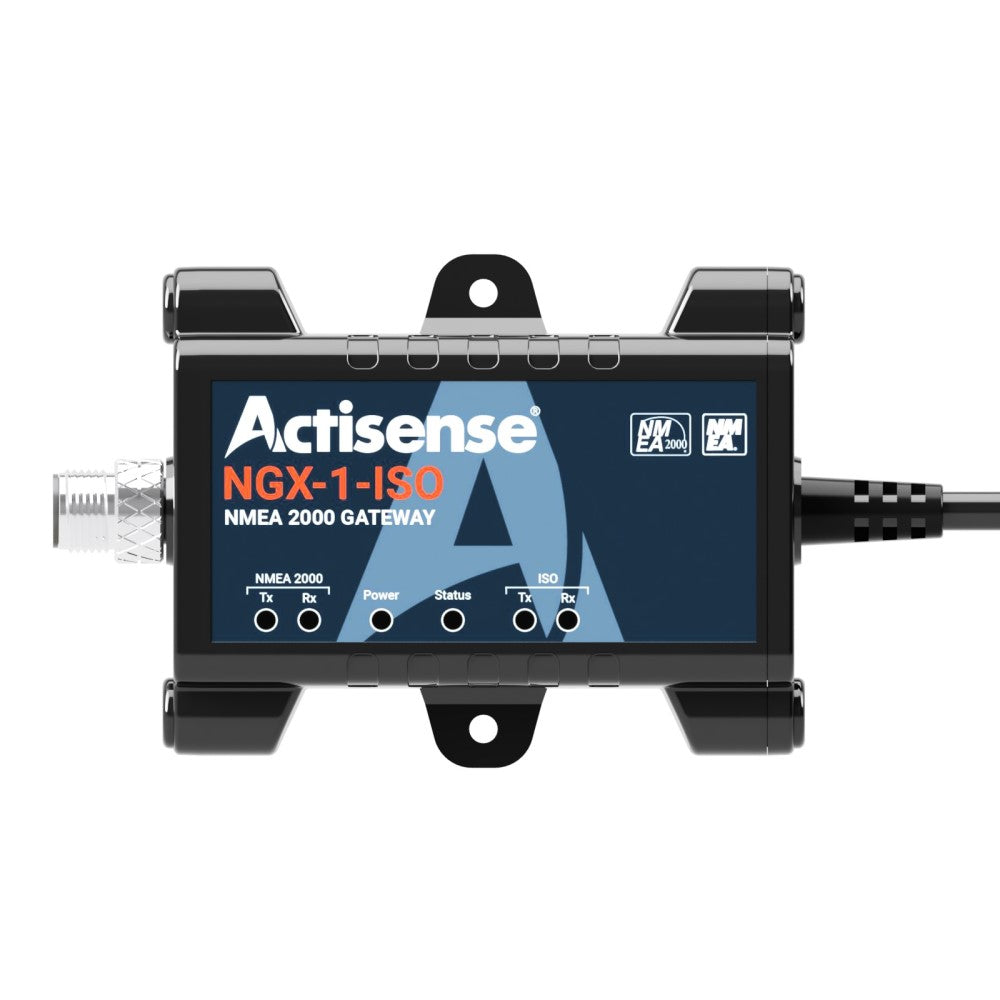

Actisense NGX-1-ISO NMEA 2000 Gateway - ISO
Actisense NGX-1-ISO NMEA 2000 Gateway - ISO
SKU:005-NGX-1-ISO
Couldn't load pickup availability
- Vital NMEA 2000 diagnostic tool
- ISO version with OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
- Up to 230 400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Integrated 1.5m drop cable
- Multiple diagnostic LEDs
Intelligent Gateway technology enables interfacing with NMEA 2000 and a PC and converting between NMEA 0183 and NMEA 2000.
The NGX-1 is an intelligent multi-function gateway combining the power of our two previous generation products (NGT-1 and NGW-1) into one cost effective flexible product.
The NGX-1 provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa. Multiple NGX-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network using the network as a means of combining and transferring all data from one place to another.
The NGX-1 is also an NMEA 2000 to PC interface able to precisely transfer messages to and from the NMEA 2000 bus. It is compatible with a wide range of chart-plotters display and configuration applications available for PCs.
Actisense Toolkit and NMEA Reader software packages enable viewing of NMEA 2000 PGNs device set-up configuration and diagnostics all to be performed via the NGX-1.
Fully NMEA 2000 Certified
The handy firewall feature enforces the NMEA 2000 bus rules so software developers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.
Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGX-1 into their software.
Bridge an NMEA 2000 network with your old 0183 electronics using the NGX-1.
The NGX-1 has the largest range of conversions available on the market.
The NGX-1 is available in two versions:
- NGX-1-USB: equipped with a USB cable to allow Plug and Play connectivity with a PC.
- NGX-1-ISO: equipped with a bare wire open ended cable allowing for connectivity to an NMEA 0183 device or Serial Port / DB-9.
