Wired Campers 20A DC-DC & 12V Accessory Complete Camper Van Kit
Wired Campers 20A DC-DC & 12V Accessory Complete Camper Van Kit
SKU:61581334430231
Couldn't load pickup availability

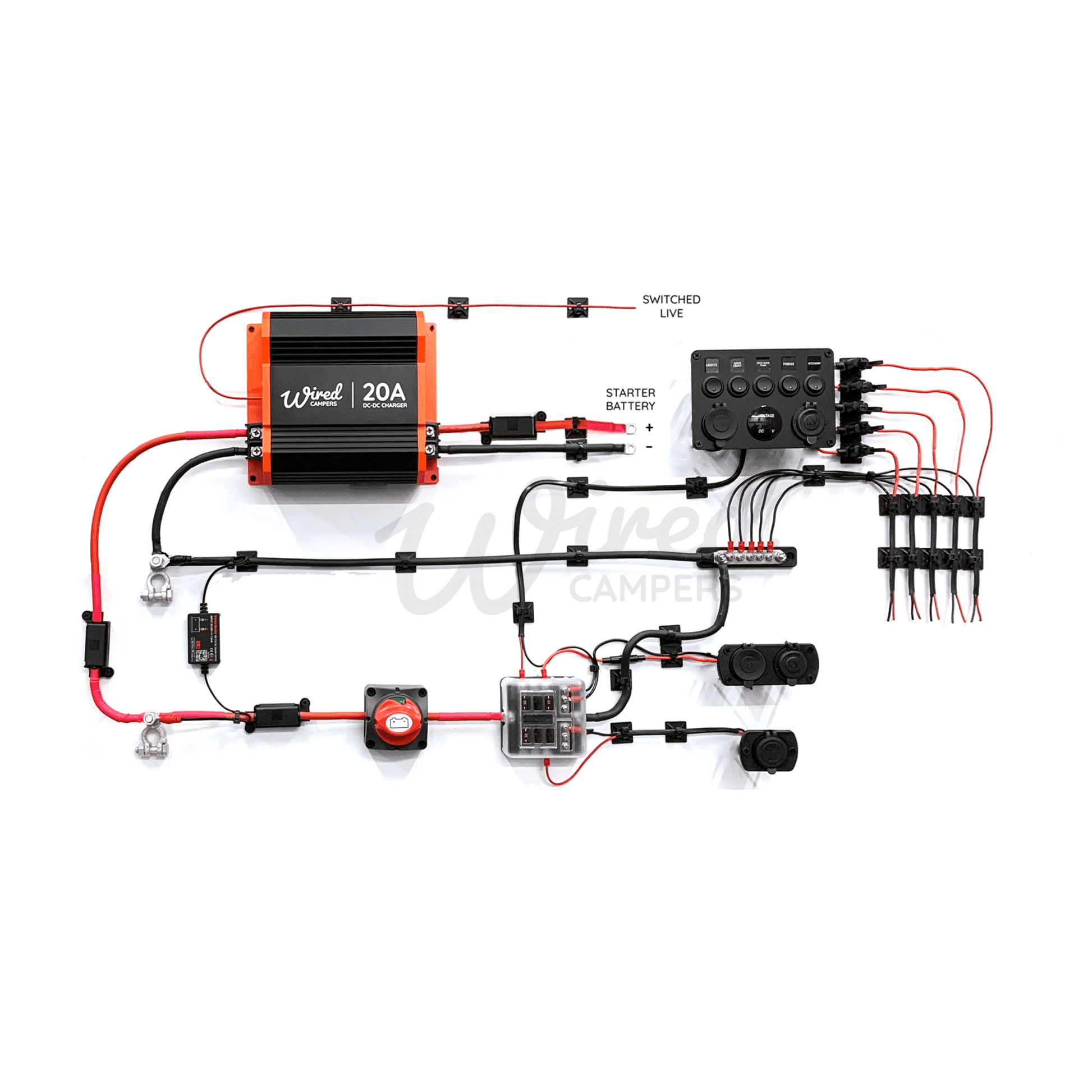

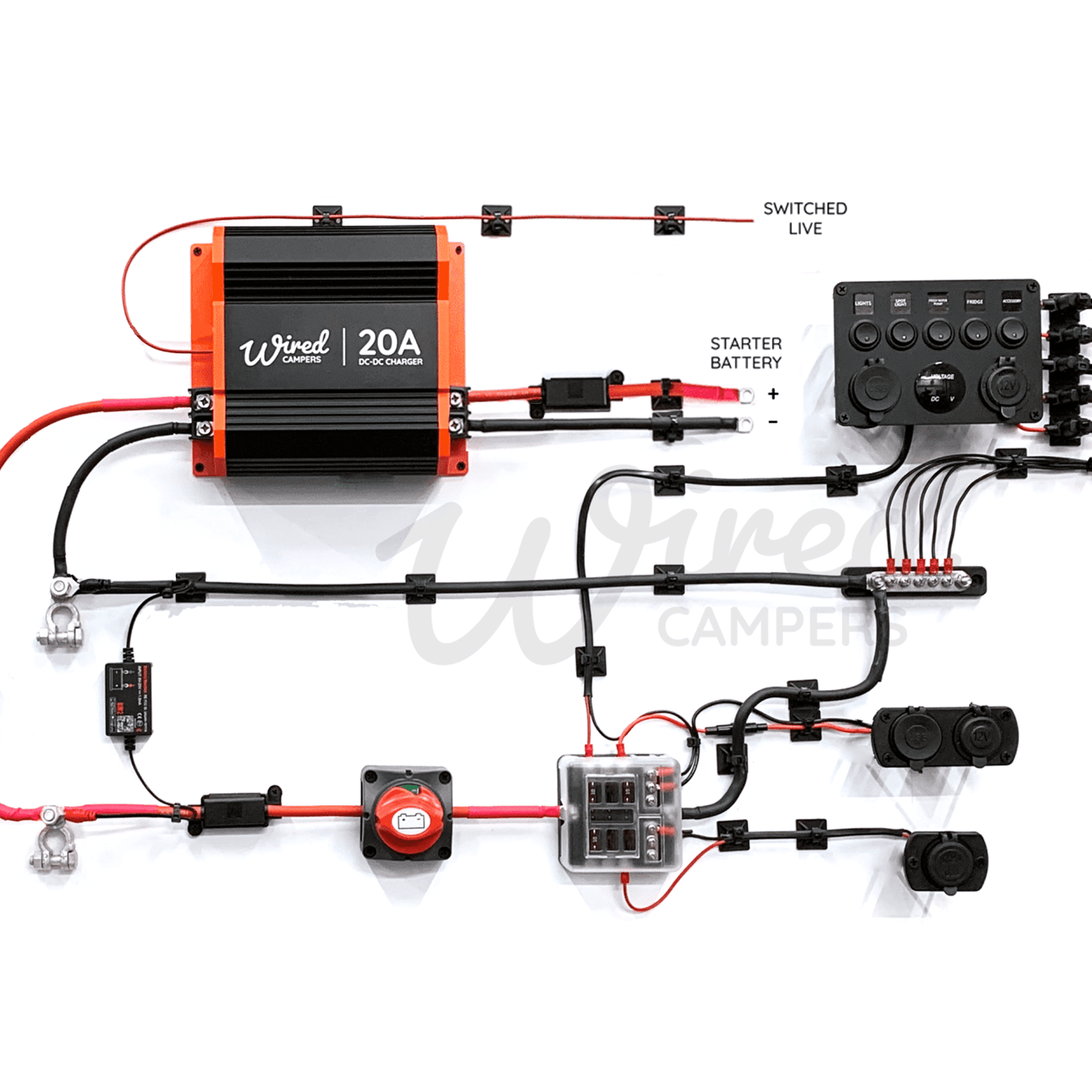

This kit will provide you the following functions -

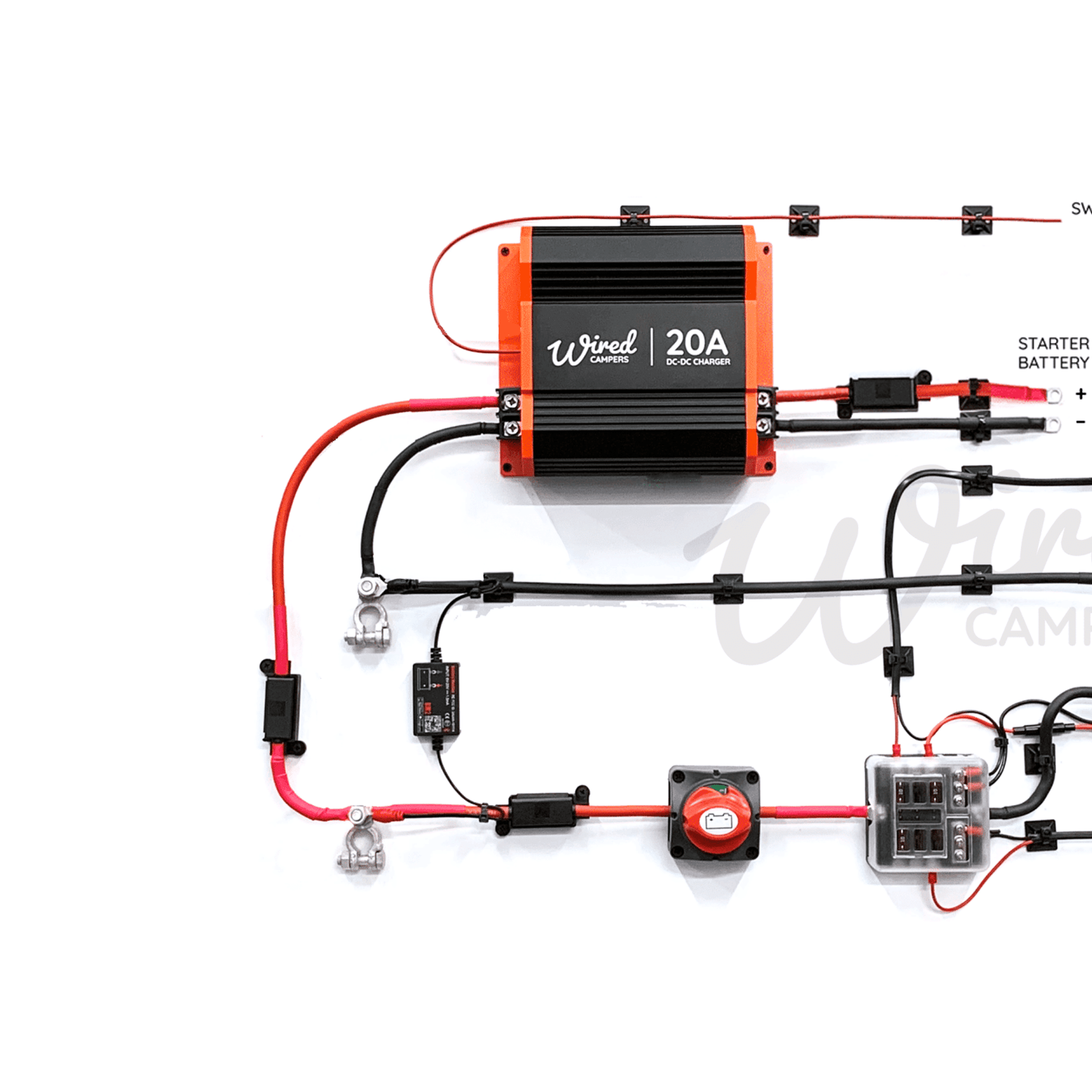

12V LEISURE BATTERY CHARGING
Leisure battery charging from the alternator your van. This is powered by our 20A DC-DC battery to battery charger.
Not only will this kit work with smart alternators, it'll also work with standard ones too. It'll provide a more stable and reliable charge to your leisure battery (extending life & available capacity) over a traditional voltage sensitive relay kit.
What makes up this part of the kit?
- 20A DC to DC battery to battery charger
- 7M 16mm2 Red hi-flex battery cable
- 5M 16mm2 Black hi-flex battery cable
- 5M 1.5mm2 Ignition trigger wire cable
- 1 X Positive leisure battery terminal
- 1 X Negative leisure battery terminal
- 2 X PVC battery terminal covers
- 2 X Bolt down MIDI fuse holders
- 2 X 30 AMP MIDI fuses
- 3 X 16mm2 8mm Hole copper crimp terminals
- 11 X 16mm2 6mm Hole copper crimp terminals
- 8 X 70mm Red heat shrink sleeve
- 6 X 70mm Black heat shrink sleeve
Technical Details
- Transformation - 12V > 12V
- Input battery voltage - 8V > 16VDC
- Charging current - 20A
- Lead acid charging voltage - 13.2V > 14.7V
- Lithium charging voltage - 12.6V > 14.6V
- Efficiency - 90%
BLUETOOTH BATTERY MONITOR
This great Bluetooth monitor allows you to keep an eye on the current state of leisure battery by providing various stats such as voltage etc as well as -
-
Receive notifications of battery condition when in bluetooth range.
-
Alerts via your phone if the system detects abnormal data.
-
Short-circuit and reverse connection protection.
-
Data stored in the battery monitor for up to 35 days if out of sync.
What makes up this part of the kit?
- Bluetooth 4.0 mobile app 12V battery voltmeter monitor
12V 6 WAY FUSE BOX, FUSE & ISOLATOR
This is the central hub for the distribution of 12V power. This runs from your leisure battery via a fuse and isolator.
What makes up this part of the kit?
- 12V 6 Way blade fuse box block holder with LED indicator & fuses
- MIDI bolt in fuse holder
- 100 AMP MIDI fuse
- Removable key medium duty 12V 200A battery power isolator
- 3M 16mm2 Red hi-flex battery cable
- 3M 16mm2 Black hi-flex battery cable
- 2 X 16mm2 10mm Hole copper crimp terminals
- 1 X 16mm2 8mm Hole copper crimp terminals
- 5 X 16mm2 6mm Hole copper crimp terminals
- 6 X 70mm Red heat shrink sleeve
- 2 X 70mm Black heat shrink sleeve
Isolator Technical Details
- 200A Continuous current
- 1000A Peak current (5 seconds)
- 10mm Terminals
- Four removable side panels for easy cable entry
- Mounting bolts and locking nuts
- Removable key for additional safety
Fuse Box Technical Details
- Built in negative bus bar
- LED function on each output that will illuminate to show any blown fuses
- Numerous labels for easy identification of outputs
- Complete with 6 fuses (2 X 5A, 2 X 10A, 2 X 15A)
- Mounting screws

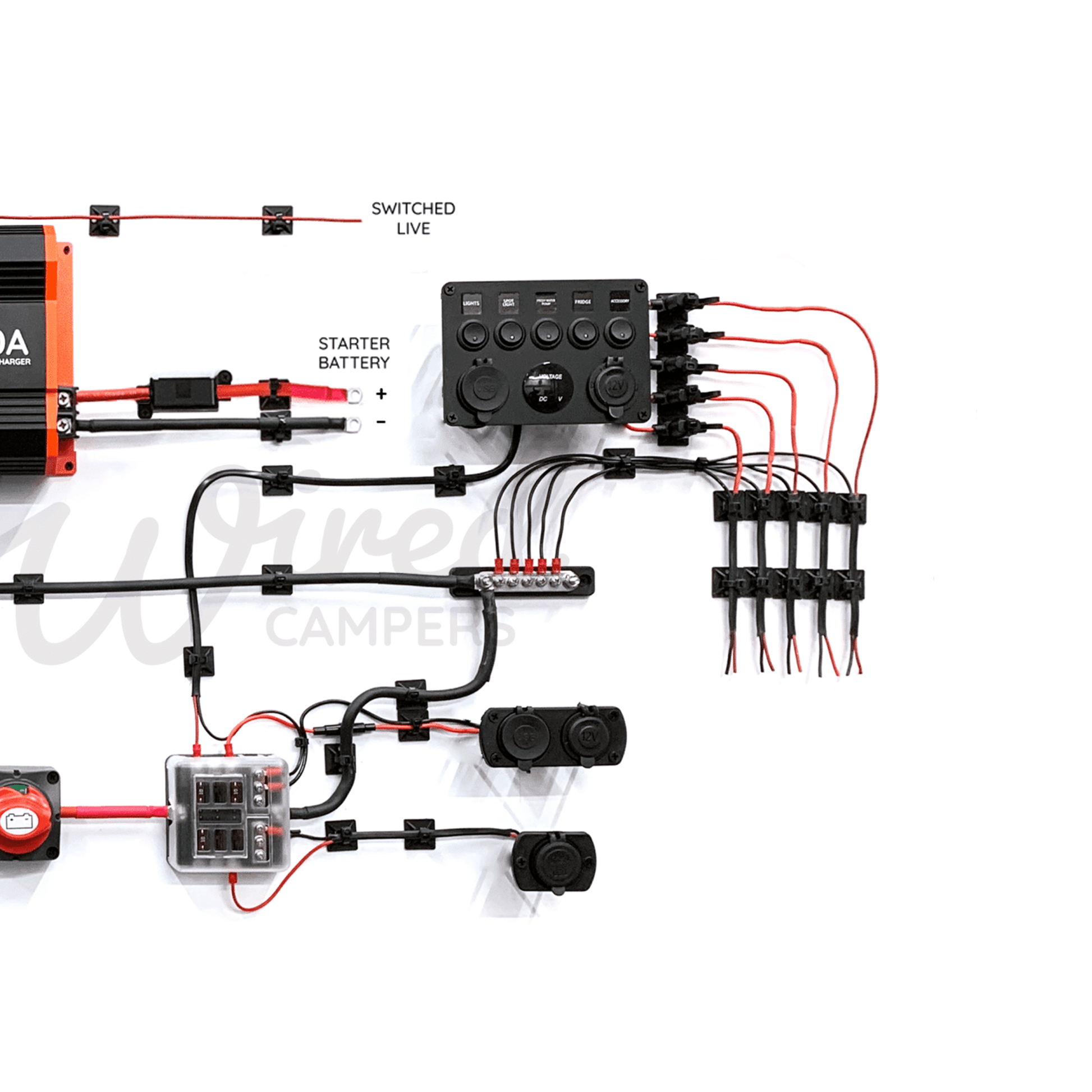

12V MAIN CONTROL PANEL & BUS BAR
This is the main control panel in the van, fed from one of the outlets on the 6 way fuse box. This unit comes with a voltmeter, USB port and a 12V port. The panel has five switched fused outlets to feed the other 12v items in your van such as your lighting, water pump. fridge etc.
There is also a 5 way negative bus bar provided, so you can terminate all negatives to this point from the control panel.
What makes up this part of the kit?
- 12V Camper/Caravan 5 gang switched USB main control panel
- 5 Way terminal DC negative common bus bar
- 2M 16mm2 Black hi-flex battery cable
- 5M 2.0mm2 twin core thin wall automotive cable
- 20M 2.0mm2 twin core thin wall automotive cable
- 1 X 16mm2 8mm Hole copper crimp terminals
- 1 X 16mm2 6mm Hole copper crimp terminals
- 11 X Insulated ring terminals
- 2 X 70mm Black heat shrink sleeve
Panel Technical Details
- Pre-wired for quick fitting
- 5 gang independent switches complete with in-line fuse holders with fuses
- Dual 2.1A USB Charger
- Voltmeter
- 12V Power socket
- Blue LED
Bus Bar Technical Details
- Max - 100A 48V
- Number of screw terminals - 5
- Number of studs - 2
12V MINI PANEL
Again, powered from the 6 way fuse box, this small panel is great for installing in the bed area of your van as it doesn't take up too much space and its ideal for charging a phone or tablet.
What makes up this part of the kit?
- 12V Camper/Caravan mini panel - dual quick charge 2.4A USB & 12V socket
- Two hole mounting plate with screws
- 2.5M 2.0mm2 twin core thin wall automotive cable
Technical Details
- Quick Charge Dual 2.4A USB Chargers
- 12V Power socket
- Fitting Screws
- Terminated cables with an in-line fuse
- Blue LED
12V QUICK CHARGE PORT
Similar to the other two units, this is also powered from the fuse box, but this one is your high powered quick charge USB C (PD) & USB A port, suitable for charging large capacity devices.
What makes up this part of the kit?
- Quick Charge 3.0 18W USB C PD port & USB A port 18W
- One hole mounting plate with screws
- 2.5M 2.0mm2 twin core thin wall automotive cable
Technical Details
- Built in ON/OFF switch to conserve power
- USB Type A Quick Charge 3.0 Port
- USB Type C PD Port
- 5V - 3A / 9V - 2A / 12V - 1.5A
- Blue LED
ADDITIONAL IMPORTANT INFORMATION
Although we have listed the 12V cable as separate lengths in each part of the kit, these are only suggestions as we know sometimes this isn't suitable and you need longer or shorter lengths. So all of the same cable will be provided on a continuous roll for you to cut up and install as per your build to give you a bit more flexibility.
As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
